PROJECT DESCRIPTION

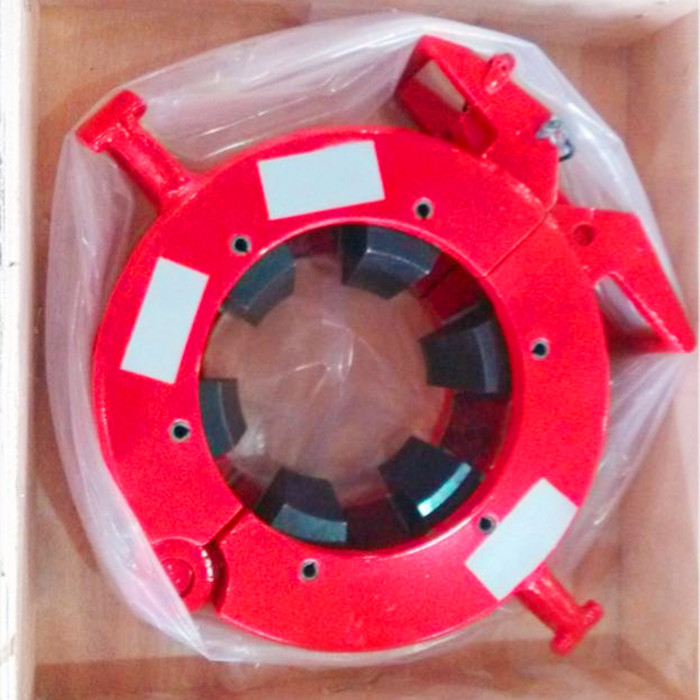

Type SJ, type SP and type SJX single joint elevators are designed and manufactured in Accordance with API spec 8C in our company. They have a complete range of sizes. They are widely used in drilling, servicing and cementing for oil and gas well. Type SJ single joint elevators are the requisite hoisting tools for catching single pipe up and down. Type SP single joint elevators are the requisite hoisting tools for catching pipe with degree up and down.
Size | Rated Cap. |
in | mm | kN |
2-3/8 ~ 2-7/8 | 60.3-73.03 | 45 |
3-1/2 ~ 4-3/4 | 88.9-120.7 |
5 ~ 5-3/4 | 127-146.1 |
6 ~ 7-3/4 | 152.4-193.7 |
8-5/8 ~ 10-3/4 | 219.1-273.1 |
11-3/4~13-3/8 | 298.5-339.7 |
13-5/8 ~ 14 | 346.1-355.6 |
16 ~ 20 | 406.4-508.0 |
21-1/2 ~ 24-1/2 | 546.1-622.3 | 60 |
26 ~ 28 | 660.4-711.2 |
30 ~ 36 | 762.0-914.4 |
Model | Size | Rated Capacity |
SP5° | 2-3/8" ~ 10-3/4" | 5 ton |
SP12° | 2-3/8" ~ 4-1/2" |
SP18° | 2-7/8" ~ 6-5/8" |
Model | Size (in) | Rated Cap.(short Tons) |
SJX-5 | 2-3/8 ~ 4-1/2 | 5 |
SJX-5 | 4-1/2 ~ 7 |
SJX-5 | 7 ~ 10 |
SJX-5 | 10 ~ 14 |
