Safety Clamp type C & T
Name:Safety Clamp type C & T
Name:Safety Clamp type C & T
Standard:API 7K
Size:1 1/8"~15 5/8"
Model:C, T
Material:Alloy Steel
Color:Black
Application:Well Drilling
Get a quote

PROJECT DESCRIPTION

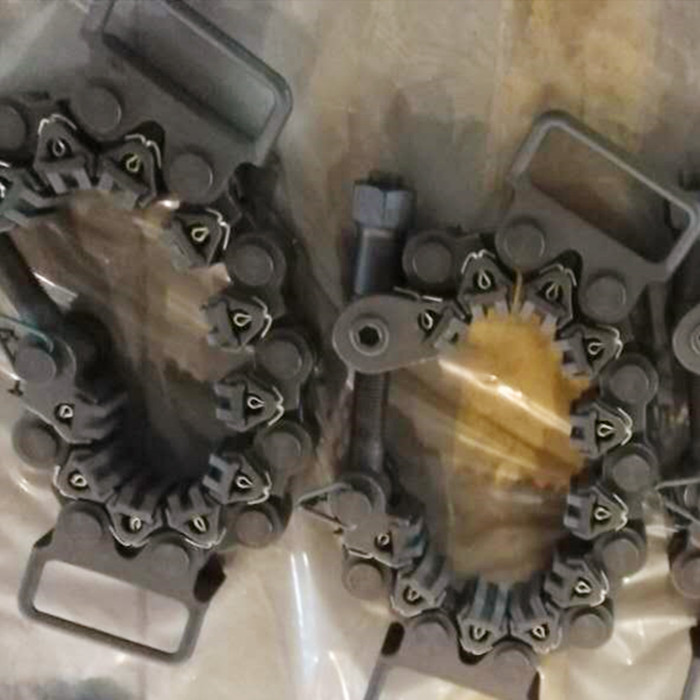

The Safety Clamp consists of individual links, flexibly hinged together. Each link has a separate tapered slip which acts as a gripping member, much like a tapered rotary slip, and each slip is held in a retracted position on the taper by spring tension. When the clamp is tightened, each small slip take a firm initial grip on the surface of the pipe. Should the pipe start to fall, or should load increase occur against the slips, the taper mounting causes each slip to wedge tighter against the surface of the pipe to increase the grip or lock the pipe against further movement.

Gripping pressure is always uniform around the pipe so there is little danger of crushing thin-walled pipe or damaging the pipe surface. And, since each link, complete with tapered slip, is interchangeable as a unit, the Safety Clamp is readily adaptable to virtually any diameter. Each link changes the effective gripping diameter of the clamp one inch. All parts are made of alloy steel, heat-treated for strength and gripping ability.

1.Type T

2.Type C

3.Type MP





Model

Size Range (in)

Total  Number of links

WA-C

33/4-45/8

7

41/2-55/8

8

51/2-65/8

9

61/2-75/8

10

71/2-85/8

11

81/2-95/8

12

91/2-105/8

13

101/2-115/8

14

111/2-125/8

15

121/2-135/8

16

131/2-145/8

17

141/2-155/8

18

Model

Size Range (in)

Total  Number of links

WA-T

11/8-2

4

21/8-31/4

5

31/2-41/2

6
