PROJECT DESCRIPTION

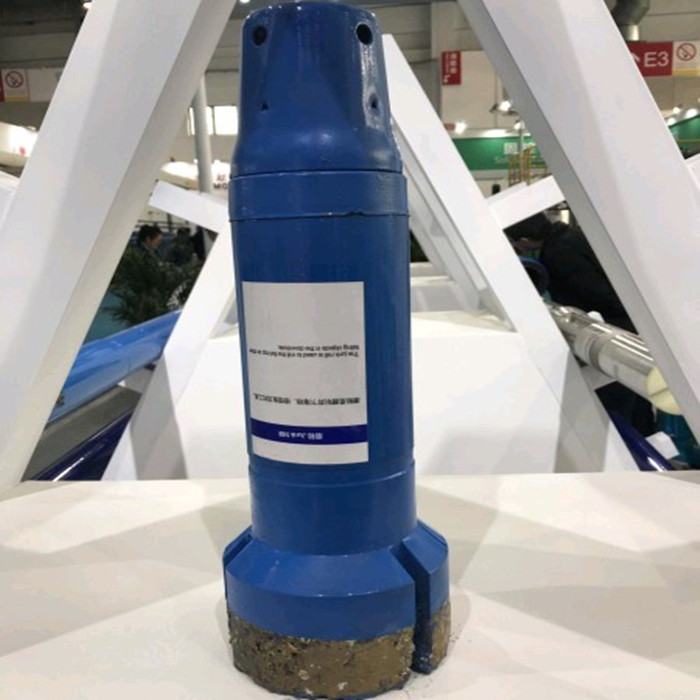

The Flat Bottom Junk Mill is the most commonly used milling tool. It is designed to milling a wide variety of junk such as squeeze tools, packers, tubing, bridge plugs and similar objects. The flat bottom junk mill whose bottom face is overlaid with YD alloy or abrasive materials is used to mill downhole junks.
Type | OD (mm) | Connection(Box) | Hole size(mm) |
MP89 | 89 | 2 3/8 REG | 95.2-101.6 |
MP97 | 97 | NC26 | 107.9-114.3 |
MP110 | 110 | NC26 | 117.5-127.0 |
MP121 | 121 | NC31 | 130.0-139.7 |
MP130 | 130 | NC38 | 142.9-152.4 |
MP140 | 140 | NC38 | 155.6-165.1 |
MP156 | 156 | NC38 | 168.0-187.3 |
MP178 | 178 | NC50 | 190.5-209.5 |
MP200 | 200 | NC50 | 212.7-241.3 |
MP232 | 232 | NC50 | 244.5-269.5 |
MP257 | 257 | 6 5/8 REG | 273.1-295.3 |
MP279 | 279 | 6 5/8 REG | 298.5-317.5 |
MP295 | 295 | 6 5/8 REG | 320.6-346.1 |
MP330 | 330 | 6 5/8 REG | 349.3-406.4 |
MP381 | 381 | 7 5/8 REG | 406.4-444.5 |
