Quick Release Thread Protector
Name:Quick Release Thread Protector
Name:Quick Release Thread Protector
Standard:API
Size:customed
Model:customed
Material:Rubber
Color:Black
Application:Well Drilling
Get a quote

PROJECT DESCRIPTION

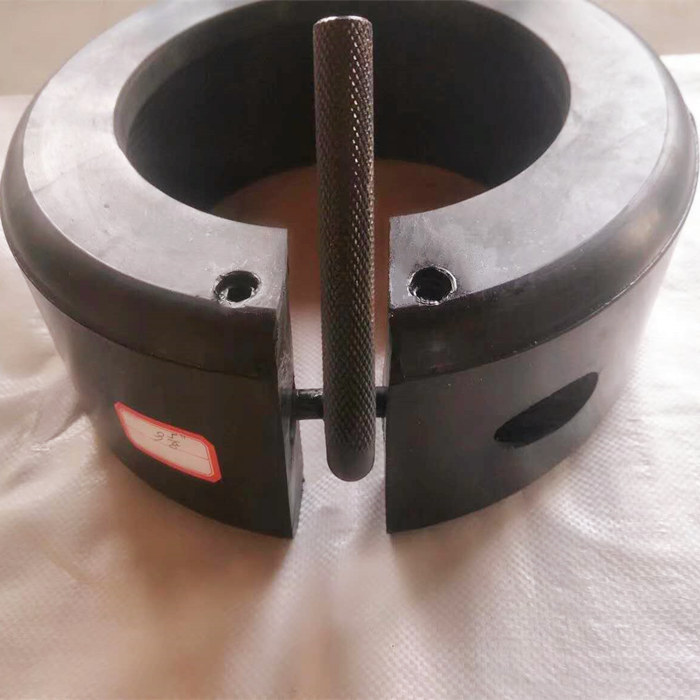

Quick release thread protector

Quick release thread protector is used to protect Casing or Tubing thread from abrasion and damage in the process of loading, unloading and transportation. It is a kind of manual device and its structure is very simple. It is composed of three parts: main body, link stopper and compressor bar. All of the three parts are made from NR/NBR, so quick release thread protector is highly resistant to oil, abrasion and corrosion. It has solid structure and long life span, and it performs well in protecting casing thread, so it is widely used. Besides, it saves time and lowers cost.

The operation of quick release thread protector is very simple. Place the quick release thread protector at the end of steel pipe thread and then push the handle firmly toward the steel pipe center and the quick release thread protector is fixed on the pipe. You can take the quick release thread protector off steel pipe by pulling the handle up.


Features of quick release thread protector:

  • Simple structure.

  • Easy operation.

  • Solid structure.

  • Save time and cost.

  • Resistant to oil, abrasion and corrosion.

  • Long life span.

The details of quick release thread protector:

  • Structure: it is composed of three parts: main body, link stopper and compressor bar.

  • Material: NR/NBR.

  • Available size (inch): 2-3/8, 2-7/8,  3-1/2,4, 4-1/2, 5, 5-1/2, 6-5/8, 7, 7-5/8, 8-5/8, 9-5/8, 10-3/4, 11-3/4, 13-3/8, 16, 18-5/8 and 20.
