| Name: | ZQ127/25 Drill Pipe Tong |
|---|---|
| Name: | ZQ127-25 Drill Pipe Tong |
| Standard: | API |
| Size: | 2 3/8 |
| Model: | ZQ127/25 |
| Material: | Alloy Steel |
| Color: | Red |
| Application: | Well Drilling |
| Get a quote |

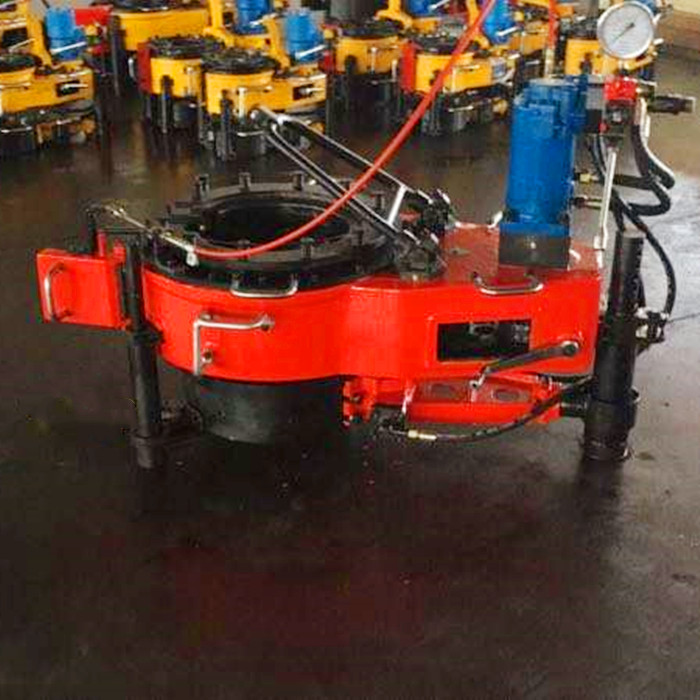

Model ZQ127-25 Drill Pipe Tong is mouth-opening type power tong used for make up and break out 2 3/8"-3 1/2" drill pipe, 2 3/8"-4 1/2" tubing and 4 1/2"-5 1/2" casing in the oil field well workover operation.
Specification：
Model | ZQ127/25 |
Pipe Size Range of Master Tong | Φ73-140 27/8''- 51/2'' |
High Gear Rated Torque | 3500N.m 2581ft-lbs |
Low Gear Rated Torque | 25000N.m 18349ft-lbs |
High Gear Rated Speed | ≤65r/min |
Low Gear Rated Speed | ≤10r/min |
Rated Operation Pressure | 16 MPa 2320 psi |
Max. Flow | 120 L/min 32 gpm |
Pneumatic Operation Pressure | |
Dimension :L x W x H | 1250x 780 x 1000 |
Weight(including Backup Tong) | 650kg 1433lbs |
