Drill Pipe
Name:Drill Pipe
Name:Drill Pipe
Standard:API 5DP
Length:R2, R3
Size:2 3/8
Grade:G105, S135
Color:Black
Application:Well Drilling
Get a quote

PROJECT DESCRIPTION

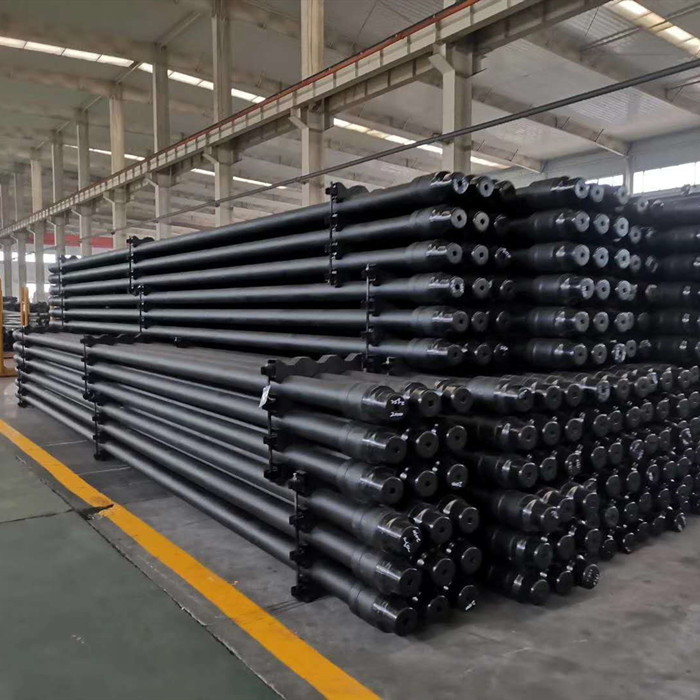

Drill pipe, is hollow, thin-walled, steel or aluminium alloy piping that is used on drilling rigs. It is hollow to allow drilling fluid to be pumped down the hole through the bit and back up the annulus. It comes in a variety of sizes, strengths, and wall thicknesses, but is typically 27 to 32 feet in length (Range 2). Longer lengths, up to 45 feet, exist (Range 3).

Drill stems must be designed to transfer drilling torque for combined lengths that often exceed several miles down into the Earth's crust, and also must be able to resist pressure differentials between inside and outside (or vice versa), and have sufficient strength to suspend the total weight of deeper components. For deep wells this requires tempered steel tubes that are expensive, and owners spend considerable efforts to reuse them after finishing a well.


A used drill stem is inspected on site, or off location. Ultrasonic testing and modified instruments similar to the spherometer are used at inspection sites to identify defects from metal fatigue, in order to preclude fracture of the drill stem during future wellboring. Drill pipe is most often considered premium class, which is 80% remaining body wall (RBW). After inspection determines that the RBW is below 80%, the pipe is considered to be Class 2 or "yellow band" pipe. Eventually the drill pipe will be graded as scrap and marked with a red band.


API 5DP standard steel grades E75 to G105 and S135, series of oil drill pipes with outer diameters from 2 3/8 ″ to 6 5/8 ″, double shoulder joint drill pipes with high torsional resistance and special steel for sulfur-containing oil wells Grade BNK C95S drill pipe. It is mainly applicable to the construction of deep wells, horizontal wells and extended reach wells in the process of oil and gas exploration and development.
