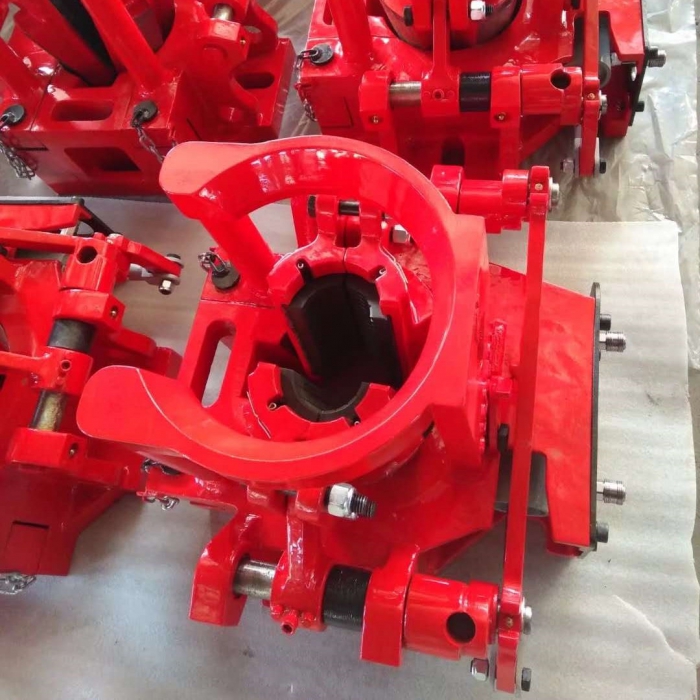

Air Tubing Spider with Slip
Name:Air Tubing Spider with Slip
Name:Air Tubing Spider with Slip
Standard:API 7K
Size:1.315
Model:C, CHD, E
Material:Alloy Steel
Color:Red
Application:Well Service
Get a quote

PROJECT DESCRIPTION

The Pneumatic Spider is used for oil well drilling and workover servicing operations. The spider allows the cable pass through during operation. Conforms to API standard. Include: Type C, CHD, E, and F

Designed for heavy duty use. It has a size range of 1.315" through 7 5/8" by changing out slip bodies and inserts. It is made of high alloy heat treated steel for strength and resistance to wear.


Model


OD of the tubulars

specification of the slip bodies

Rated Capacity

C

1.315-31/2

31/2

80tons

31/2-41/2

41/2

43/4

43/4(Integral)

5

5(Integral)

51/2

51/2(Integral)

CHD

1.315-31/2

31/2

120tons

31/2-41/2

41/2

43/4

43/4(Integral)

5

5(Integral)

51/2

51/2(Integral)

HD

1.315-31/2

31/2

125tons

31/2-41/2

41/2

43/4

43/4(Integral)

5

5(Integral)

51/2

51/2(Integral)

E

23/8-31/2

31/2

175tons

4-51/2

51/2

51/2-7

7

75/8

75/8 (Integral)
