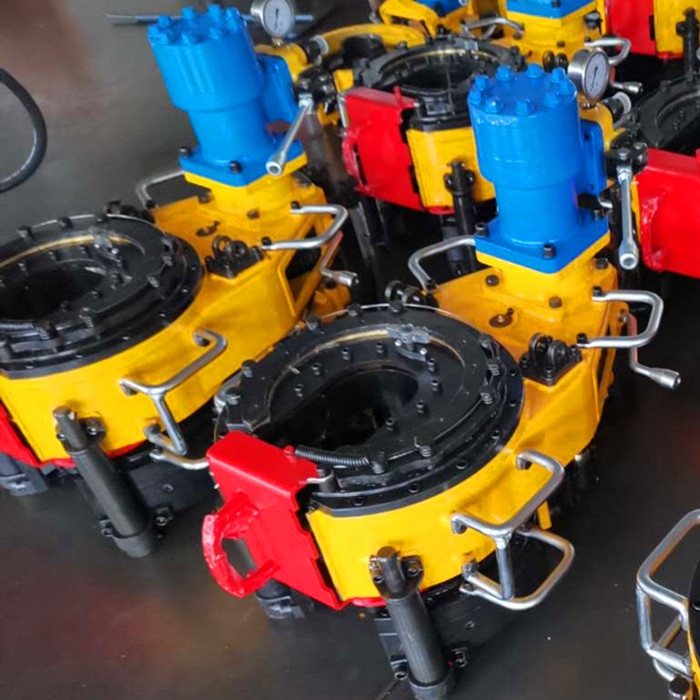

Tubing Tong XQ114/6B
Name:Tubing Tong XQ114/6B
Name:Tubing Power Tong
Size:2 3/8, 2 7/8, 3 1/2, 4 1/2
Torque:4425 ftlbs
Material:Alloy Steel
Color:Blue and yellow
Get a quote



Model XQ114/6YB(4 1/2") hydraulic power tong is an open type power tong for the making up and breaking out of tubing in well services. This product has the following features:

1. The tong is made up of master tong and backup tong, the master tong has a high and low gear train, the tong is compact, light and efficient.

2. The master tong and backup hydraulics operate on valve banks independent of each other.

3. The tong has incorporated a new system of disc brake to hold the jaws to connection more effectively.

4. Makeup and breakout are made easy with a simple turn to the reset knob on the tong and backup.

5. The backup has been supplied with quick coupling hoses and connections for quick and easy installation for jobs where you need a backup and the backup can be removed in seconds for jobs that a backup is not required.


1.     Application:Tubing:73mm-114mm (2 7/8"to 4 1/2")

2.     High gear rated torque:1.5 kN.m (1106 ft.lbs)

3.     Low gear rated torque:6 kN.m (4425 ft.lbs)

4.     high gear max rotation speed:85 RPM

5.     Low gear max rotation speed:20 RPM

6.     Opening of tong head:118 mm

7.     Overall dimension (L×W×H):750×500×600 mm

8.     Weight:220 kg(485lbs)

9.     Rated system pressure:1595 Psi

10.   Max oil supply:100 L/ min
