| Name: | Tubing Tong XQ140/12A |
|---|---|
| Name: | Hydraulic Power Tong |
| Standard: | ISO |
| Size: | 2 3/8 |
| Torque: | 8850 ftlbs |
| Material: | Alloy Steel |
| Color: | Blue and yellow |
| Application: | Tubing, Drill Pipe, Casing |
| Model: | XQ140/12A |
| Get a quote |

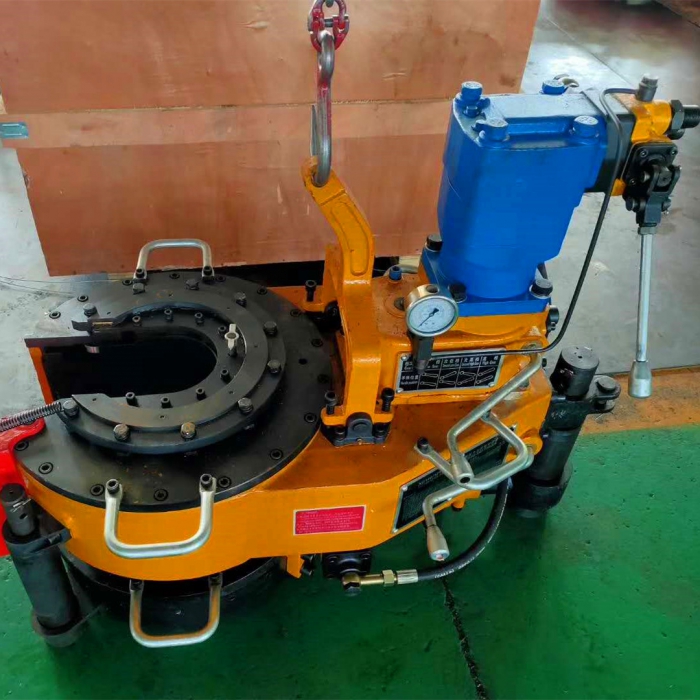

Model XQ140/12A hydraulic power tong is a mouth opening power tong which can quickly make-up or
break-out pipe strings in well service. It is used in making-up or breaking-out tubing, small drilling pipe
and small casing with diameters from 2 3/8″-51/2″ . Compared with the same type of tongs by other tong
makers, it features simple structure, convenient operation, reliable performance, long life, broad application
range and large torque. It is widely used in onshore or offshore oilfields. It can reduce workload, improve
work efficiency and the well service quality.
Specification：
Model | XQ140/12A |
Pipe Size Range of Master Tong | Φ60-140 23/8’’- 51/2’’ |
Pipe Size Range of Backup Tong | Φ60-156 27/8’’- 61/8’’ |
High Gear Rated Torque | 2600N.m 1900ft-lbs |
Low Gear Rated Torque | 12000N.m 8850ft-lbs |
High Gear Rated Speed | 72r/min |
Low Gear Rated Speed | 14r/min |
Rated Operation Pressure | 12 MPa 1740 psi |
Max. Flow | 120 L/min 32 gpm |
Dimension :L x W x H | 1031 x 621 x 841 |
Weight(including Backup Tong) | 490 kg 1080 lbs |
