| Name: | Rod Tong XQ29/1.8 |
|---|---|
| Name: | Rod Tong |
| Standard: | ISO |
| Application: | Sucker Rod |
| Size: | 5/8 |
| Material: | Alloy Steel |
| Color: | Blue and yellow |
| Torque: | 1327ft.lbs |
| Maximum Speed: | 104 r/min |
| Get a quote |

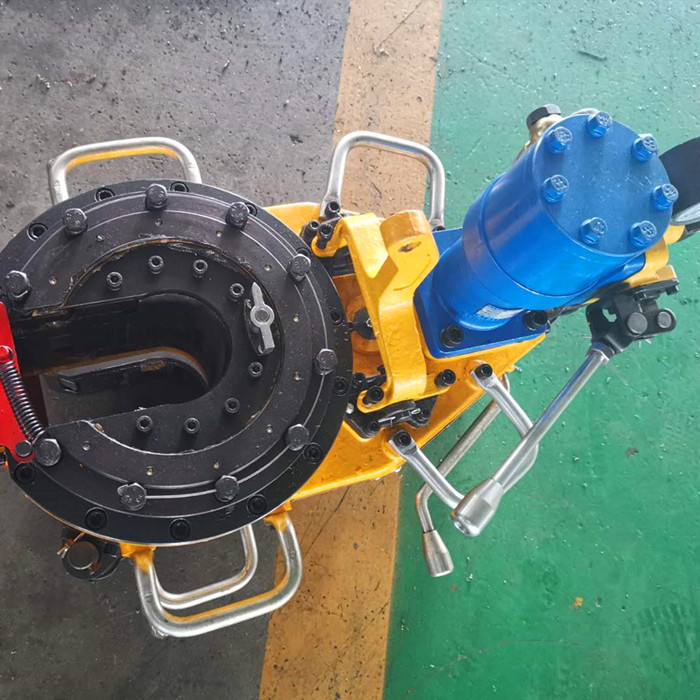

XQ29/1.8 SUCKER ROD TONG
Model XQ29/1.8 Hydraulic power tong is an opening type power tong, which is used to make up and break out sucker rod’s joint casing thread in well service. It has following features:
●The master tong is driven by low speed large torque hydraulic oil motor, control valve matches oil motor directly, its structure is simple, compact and portable.
●The new hydraulic backup tong and the master tong form a combined tong, operate the control valve on the master tong, the backup tong will automatically clip or simultaneously loosen the sucker rod joint.
●The method that both master tong and backup tong use are inner curved roller climbing and bi-direction clipping mechanism. It just needs to change the direction of knob on master tong and backup tong when clipping.
●Change dies of different sizes, it can clip sucker rod’s joint or tubing of corresponding specification.
●The tong has two speeds. It works with high efficiency when jerking and spinning at low speed or high speed.
Specification：
Model | XQ29/1.8 |
Pipe Size Range of Master Tong | 5/8''-11/8''Sucker Rod,17/8-23/8''Tubing |
Pipe Size Range of Backup Tong | 5/8''-11/8''Sucker Rod,17/8-23/8''Tubing |
High Gear Rated Torque | 700N.m 516ft-lbs |
Low Gear Rated Torque | 1800N.m 1327.6ft-lbs |
High Gear Rated Speed | 104r/min |
Low Gear Rated Speed | 40r/min |
Rated Operation Pressure | 10 MPa 1450 psi |
Max. Flow | 65 L/min 17 gpm |
Dimension :L x W x H | 543 x 334 x 404 |
Weight(including Backup Tong) | 105kg 231lbs |
